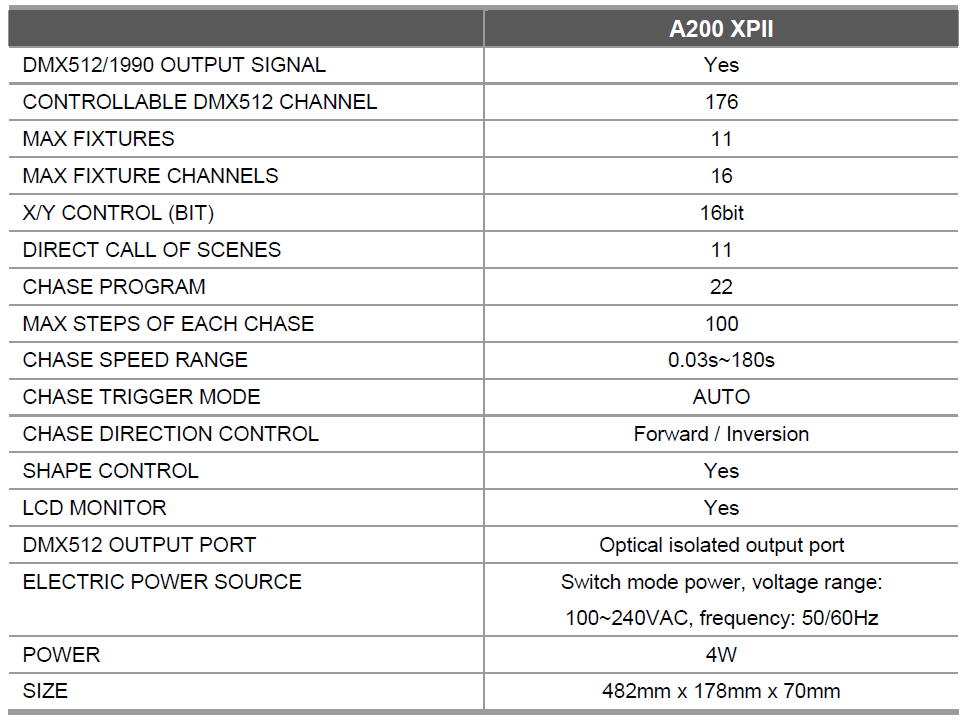

DMX512 Console
176 DMX channels
Up to 11 Fixtures may be connected with a maximum of 16 channels each
16-bit X/Y control for absolutely precise movement
Shape track control is provided to control such effects as shapes like 8 etc
22 chases, up to 100 steps each
1 chases, 11 scenes operated at the same time

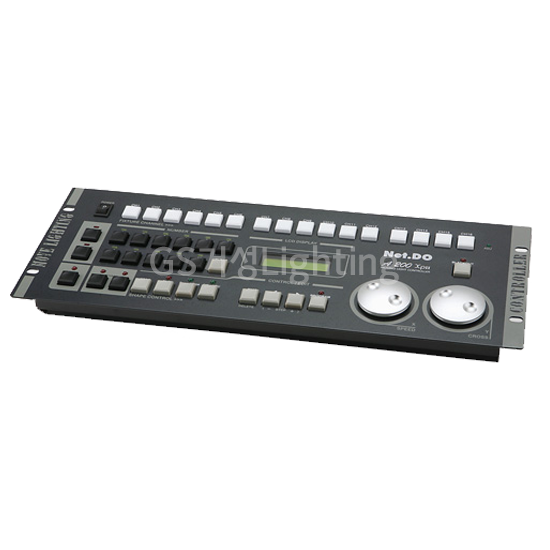

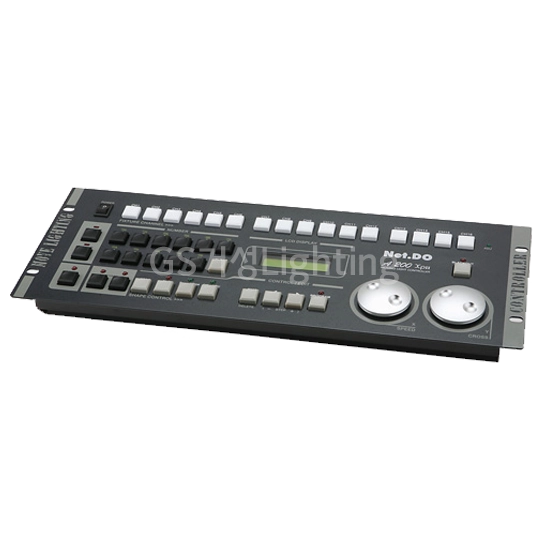

Net.DO
A200XP2 Intelligent Fixtures Controller can connect up to 11 intelligent Fixtures with
a maximum of 16 Channels each. It uses 16-bit X/Y control for absolutely precise movement
The new technology of the core microcomputer has strengthened the functions. They are more humanized
Hardware Features
- The intelligent Fixtures can be manually controlled and run multi Scenes and multi Chase
programs to give out various combination effects
Up to 11 intelligent Fixtures may be connected with a maximum of 16 Channels each
The X/Y Channel of different intelligent Fixtures can be controlled by modulation Wheel
Able to store 22 Chase programs with a maximum of 100 Steps each
1 Chase, 11 Scenes operated at one time. Up to11 intelligent Fixtures can be selected simultaneously
Shape track control is provided to control such effects as circles, lines and shapes like 8 etc
DMX output with optical isolated, ensure the safety of controller
A200XP2 Intelligent Fixtures Controller can connect up to 11 intelligent Fixtures with
a maximum of 16 Channels each. It uses 16-bit X/Y control for absolutely precise movement
The new technology of the core microcomputer has strengthened the functions. They are more humanized
Hardware Features
- The intelligent Fixtures can be manually controlled and run multi Scenes and multi Chase
programs to give out various combination effects
Up to 11 intelligent Fixtures may be connected with a maximum of 16 Channels each
The X/Y Channel of different intelligent Fixtures can be controlled by modulation Wheel
Able to store 22 Chase programs with a maximum of 100 Steps each
1 Chase, 11 Scenes operated at one time. Up to11 intelligent Fixtures can be selected simultaneously
Shape track control is provided to control such effects as circles, lines and shapes like 8 etc
DMX output with optical isolated, ensure the safety of controller
