MAX512
가격문의(상세정보 참조)
DMX512 Console
512 DMX channels
Up to 30 Fixtures may be connected with a maximum of 32 channels each
16-bit X/Y control for absolutely precise movement
Shape track control is provided to control such effects as shapes like 8 etc
30 chases, up to 100 steps each
6 chases, 30 scenes operated at the same time
Net.DO

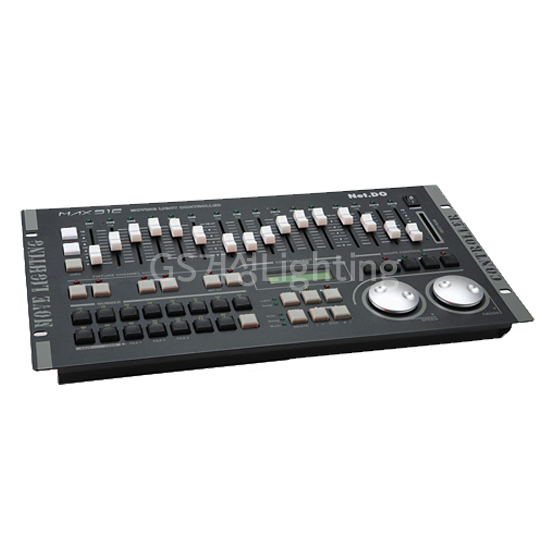

MAX512 Intelligent Fixtures Controller can connect up to 30 intelligent Fixtures with a maximum of 32 Channels each
The new technology of the core microcomputer has strengthened the functions. They are more humanized

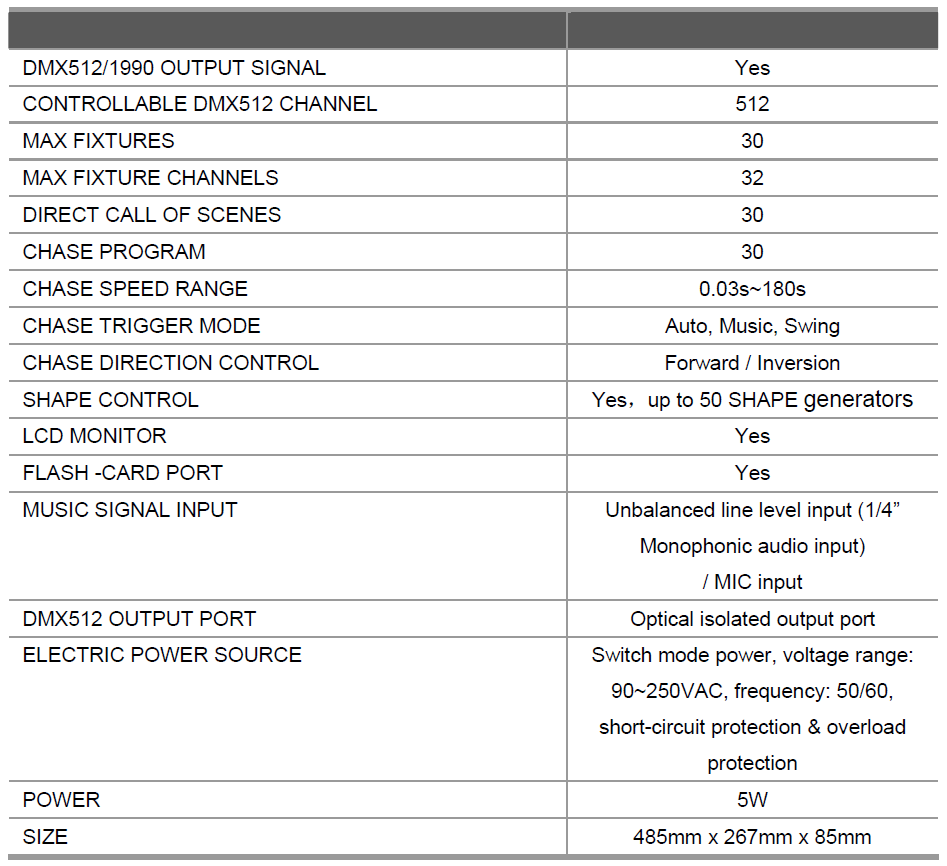

Hardware Features
- DMX512/1990 standard, 512 DMX channels, output with optical isolated
- Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each
- Uses can allocate DMX channel to each intelligent Fixture dynamically
- The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel
- Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8 etc
- 30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed
- 6 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously
- Flash-card slot is provided. each Flash-card can record the whole data of controller
- LCD display with backlight.
- Power supply: AC 90-250V / 50-60Hz
MAX512 Intelligent Fixtures Controller can connect up to 30 intelligent Fixtures with a maximum of 32 Channels each
The new technology of the core microcomputer has strengthened the functions. They are more humanized
Hardware Features
- DMX512/1990 standard, 512 DMX channels, output with optical isolated
- Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each
- Uses can allocate DMX channel to each intelligent Fixture dynamically
- The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel
- Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8 etc
- 30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed
- 6 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously
- Flash-card slot is provided. each Flash-card can record the whole data of controller
- LCD display with backlight.
- Power supply: AC 90-250V / 50-60Hz
