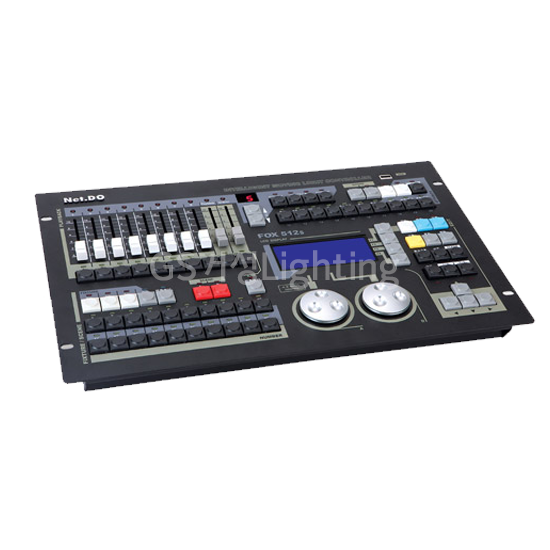

FOX512s
가격문의(상세정보 참조)
DMX512 Console
512 DMX channels
Up to 60 intelligent Fixtures or 60 Dimmer could be connected
Up to 42 channels each Fixture. Fixture Library mode (R20)
240 Playback program. 40 Scene can be directly used keys running, flash or latch
16-bit X/Y control for absolutely precise movement
Shape track control is provided to control such effects as shapes like 8 etc
Net.DO
FOX series moving light controller with microcomputer as core,
in adoption of new technology has more powerful and humanized functions

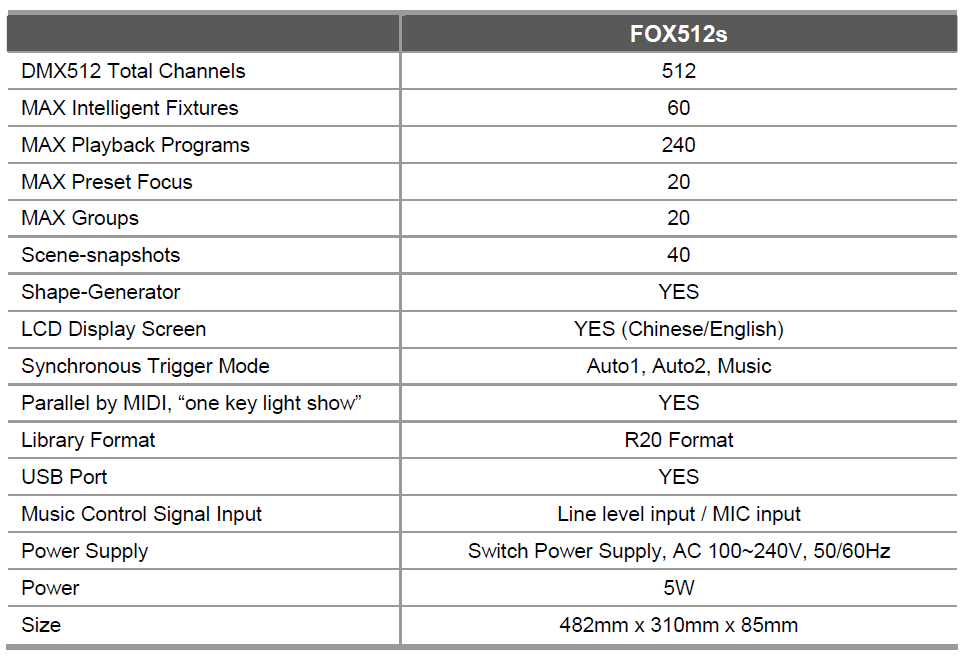

Hardware Features
- 512 DMX channels, DMX512/1990 standard, Output ports with optical isolated
- Up to 60 intelligent Fixtures or 60 Dimmer could be connected
- Up to 42 channels each Fixture, Fixture Library mode, “R20” Fixture Library compatible
- 240 Playback programs, 40 Scenes can be overlapped and output, under flash or latch mode
- Effect generator “SHAPE” is provided to program effects like circle, wave, rainbow etc. Overlap, deform, spread and symmetry are also supported
- Playback trigger mode selectable: Auto1, Auto2, Music synchronous
- One key “Light Show” is achievable, up to 20 light shows can be saved and used (without PC)
- MIDI ports are provided to connect consoles in parallel or receive MIDI code to run “Light Show”
- LCD display with backlight. 12V operate light (OPTIONAL)
- USB port is provided for data backup and update by USB-disk
