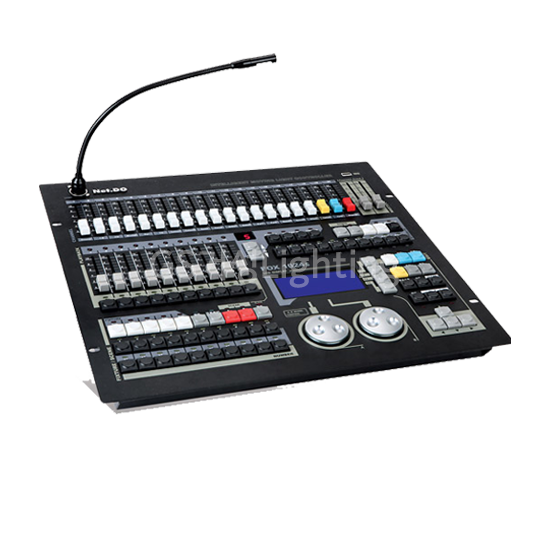

FOX1024s
가격문의(상세정보 참조)
DMX512 Console
1024 DMX channels
Up to 100 intelligent Fixtures or 100 Dimmer/LED can be connected
Up to 42 channels each Fixture. Fixture Library mode (R20)
300 Playback program. 40 Scene can be directly used keys running, flash or latch
16-bit X/Y control for absolutely precise movement
Shape track control is provided to control such effects as shapes like 8 etc
Net.DO
FOX series moving light controller with microcomputer as core,
in adoption of new technology has more powerful and humanized functions
Hardware Features
- 1024 DMX channels, DMX512/1990 standard, Output ports with optical isolated
- Up to 100 intelligent Fixtures or 60 Dimmer could be connected
- Up to 42 channels each Fixture, Fixture Library mode, “R20” Fixture Library compatible
- 300 Playback programs, 40 Scenes can be overlapped and output, under flash or latch mode
- Effect generator “SHAPE” is provided to program effects like circle, wave, rainbow etc. Overlap, deform, spread and symmetry are also supported
- Playback trigger mode selectable: Auto1, Auto2, Music synchronous
- One key “Light Show” is achievable, up to 20 light shows can be saved and used (without PC)
- MIDI ports are provided to connect consoles in parallel or receive MIDI code to run “Light Show”
- LCD display with backlight. 12V operate light (OPTIONAL)
- USB port is provided for data backup and update by USB-disk
FOX series moving light controller with microcomputer as core,
in adoption of new technology has more powerful and humanized functions
Hardware Features
- 1024 DMX channels, DMX512/1990 standard, Output ports with optical isolated
- Up to 100 intelligent Fixtures or 60 Dimmer could be connected
- Up to 42 channels each Fixture, Fixture Library mode, “R20” Fixture Library compatible
- 300 Playback programs, 40 Scenes can be overlapped and output, under flash or latch mode
- Effect generator “SHAPE” is provided to program effects like circle, wave, rainbow etc. Overlap, deform, spread and symmetry are also supported
- Playback trigger mode selectable: Auto1, Auto2, Music synchronous
- One key “Light Show” is achievable, up to 20 light shows can be saved and used (without PC)
- MIDI ports are provided to connect consoles in parallel or receive MIDI code to run “Light Show”
- LCD display with backlight. 12V operate light (OPTIONAL)
- USB port is provided for data backup and update by USB-disk
