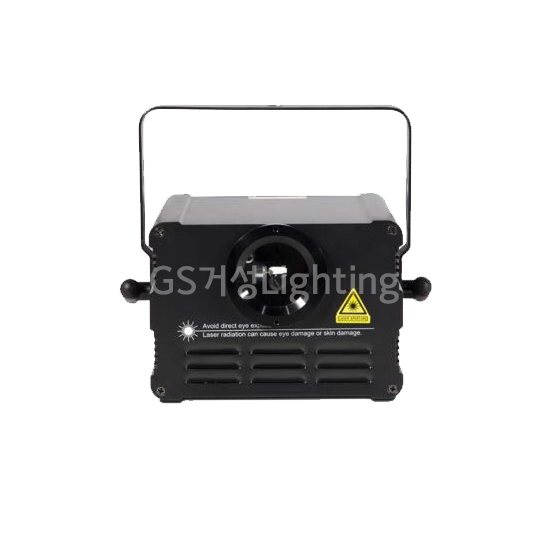

An animation laser projects dynamic graphics, patterns, and text using laser beams,
adding visual impact to concerts, clubs, and events
Hardware Features
- Source: 1,000 mW diode
- Red power/wavelength: 250mW/638nm
- Green power/wavelength: 100mW/520nm
- Blue power/wavelength: 700mW/450nm
- Color mixing: RGB
- Safety class: 3B
- Modulation: TTL
- Scan system: 15K scanner
- Scanning angle: ±30°
- Control protocols: DMX, ILDA, Auto, Sound, Master-slave
- Display: LCD
- Internal patterns: 51
- Control channels: 13 CHs
- Input voltage: AC100-240V/50-60Hz
- Power consumption: 22 watts
- DMX connections: 3 pin XLR In/Out male and female
- Power connections: PowerCon In
- Dimensions: 188 x 193 x 173mm
- Net weight: 2.4 Kg
- Color: Black
- IP rating: 20
- Operating temperature: 0°C/40°C
