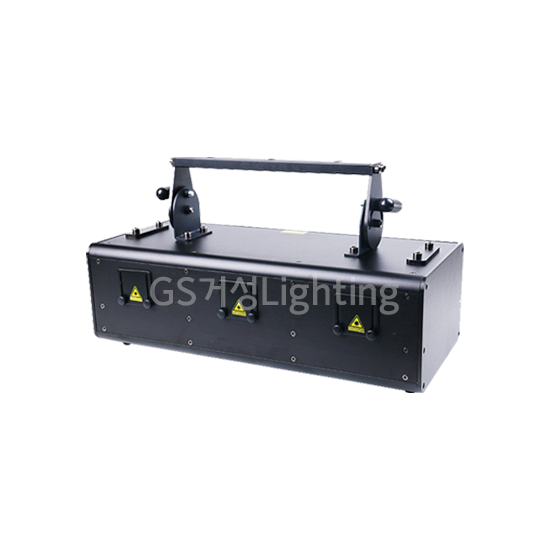

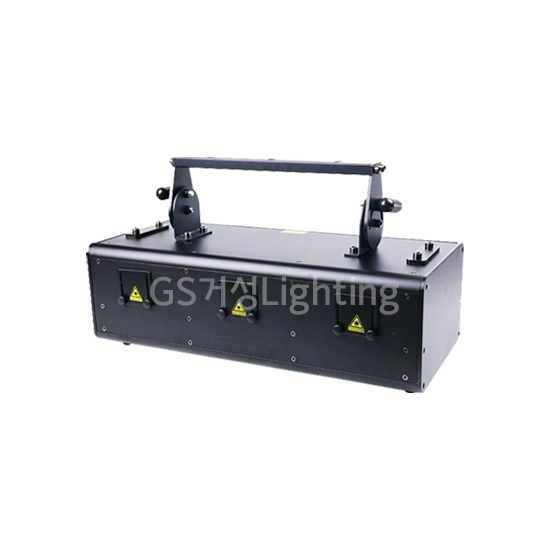

An animation laser projects dynamic graphics, patterns, and text using laser beams,
adding visual impact to concerts, clubs, and events
Hardware Features
- Source: 3 x 2500 mW diodes
- Red power/wavelength: 430mW/638nm
- Green power/wavelength: 680mW/520nm
- Blue power/wavelength: 1400mW/445nm
- Color mixing: RGB
- Laser safety: Class 3B
- Modulation: Analog
- Scan system: 15K scanner
- Scanning angle: ±20°
- Control protocols: DMX, Auto, Sound, Master-slave
- Display: 2.4’ TFT Display
- Internal patterns: 100
- Control channels: 21, 63 CHs
- Input voltage: AC100-240V 50/60Hz
- Power consumption: 100 watts
- DMX connections: 3 pin XLR In/Out male and female
- Power connections: PowerCon In
- Dimensions: 500 x 249 x 290mm
- Net weight: 11 Kg
- Color: Black
- IP rating: 20
- Operating temperature: 0°C/40°C
