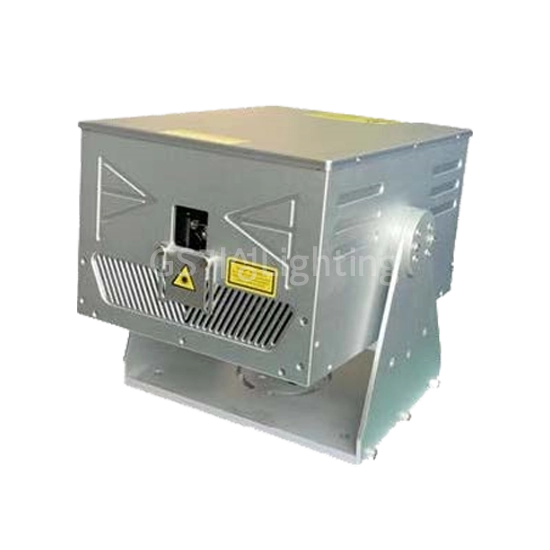

An animation laser projects dynamic graphics, patterns, and text using laser beams,
adding visual impact to concerts, clubs, and events
Hardware Features
- Input voltage: AC110v-240V50/60Hz
- Output power: 500W
- Laser type: all solid state semiconductor laser
- Power configuration: 20W / 30W Power
- Red power/wavelength: 6,000 / 8,000 mW/638nm
- Green power/wavelength: 6,000 / 1,000 mW/520nm
- Blue power/wavelength: 8,000 / 12,000 mW/450nm
- Modulation speed: >100KHz analog modulation
- Service life: >10000 hours
- Laser emission angle: <1.2mrad (full angle)
- Laser spot: <6mm (6*6mm)
- Scanning speed: 40K (40000 times/second)
- Galvanometer angle: 60º (+/-30) standard scanning unit and
- scanning drive circuit, the maximum speed is 40000PPS
- Working temperature: 5-45 degrees
- Cooling method: air cooling
- Control mode: Standard ILDA interface, American pangolin-Quick show control,
built-in self-propelled play program sequence, DMX function
Software used: pangolin-Quick show, Beyond
Control method: PC computer (ILDA software), DMX512 console (optional)
DMX channel: 12/21 channel (optional)
Lamp body size: 318*428*230mm
(plus the total height of the base 346mm)Weight: 27KG
