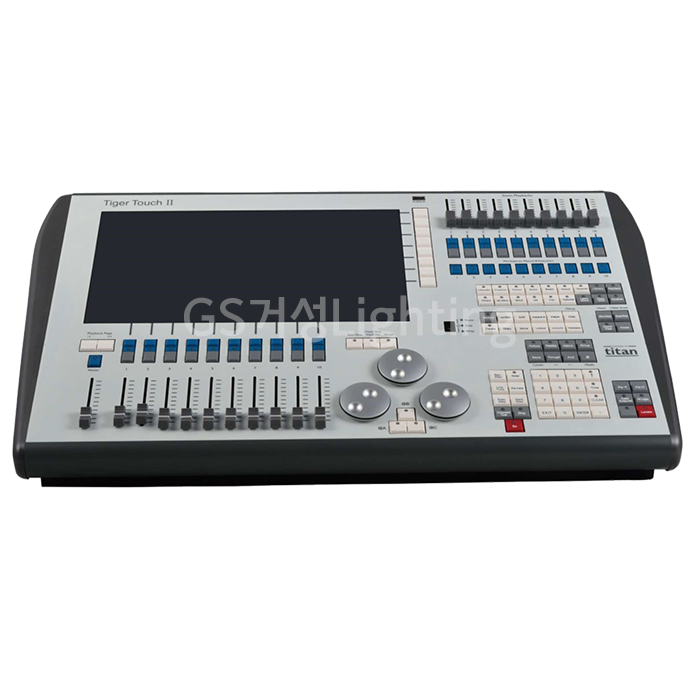

The core of the console range. High end
features in a compact and great-value package
Hardware Features
- Intel (Intel) Core 15 dual-core processor, 120g solid state drive, 4gb operating memory
- Built-in 15.6-inch capacitive touch screen, with better brightness and viewing angle, can expand a high-definition display with touch
- Standard 8DMX output port and MIDI interface, 4096 DMX channels. Can be expanded to 64 DMX output ports, 32768DMX channels
- Built-in UPS power supply, which can supply power for about 30 minutes after power failure (can be customized for power failure and work time) to prevent the sudden power failure system from damaging the cargo loss program. It can be extended to 1 to 5 hours. It can be started without external power supply
- Built-in graphic generator, and built-in effects can be synchronized
- The console has a built-in player time code, which makes it easy to edit the light show
- 10 macro keys to edit any program
- 20 playback faders, supporting 1000 virtual playbacks
- Powerful attribute control window, CMY RGB color picker system
- Support doodle handwriting naming function, support Art-Net network function
- Support Chinese menu display, and built-in multiple languages
- Built-in thousands of light libraries, and built-in light library editing software, you can write light libraries on the console at any time
- Built-in Visualiser visual stage simulation software, support video, can be pre-programmed
- Support MIDI time code sound and light synchronization function, can also play music in the console to send time code to control lighting program playback
- Product weight: Net weight 14KG, carton package 18KG, air box package 29KG
- Carton packing: 73.5 × 63.5 × 23.5 (length, width, height)
- Flight case packing: 73.5 × 55.5 × 31.5

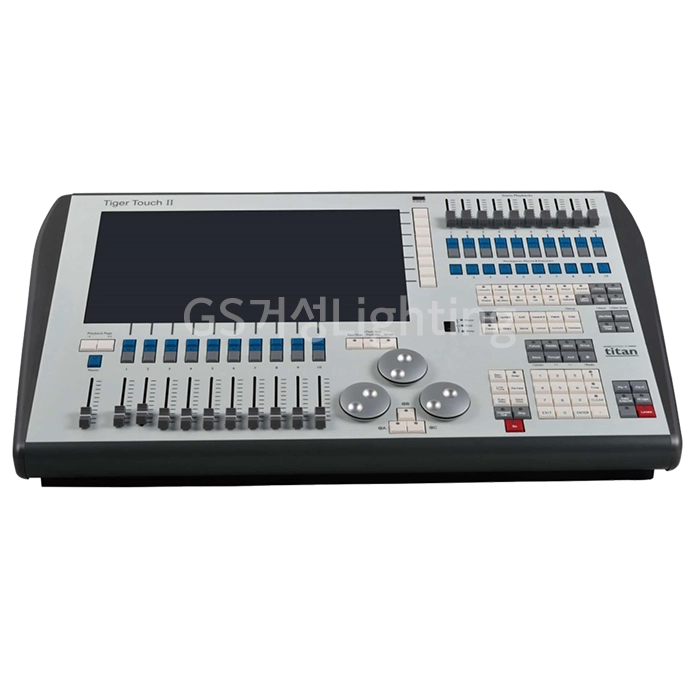

The core of the console range. High end
