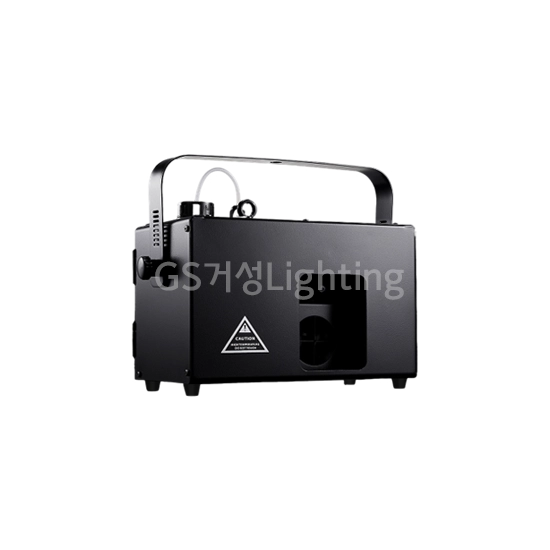

A haze machine creates a fine, translucent mist that enhances light beams and atmosphere
without obscuring visibility, ideal for stage and event lighting
Hardware Features
- Input Voltage & Rate: 220-240 V, 50/60 Hz
- Current Limiter Type: Fuse (F)
- Current Limiter Specifications: 3 A, 250 V
- Total Power Consumption: 230 W
- Operating Current: 1.0 A
- Power Input Connector: Hard-wired
- Heat Up Time: Appr. 2 min 30 s
- Heater Type: Fast Coil Heater
- Fluid Tank Capacity : 1.5 L
- Adjustable Volume: √
- Volume Adjustment Level/Range: 1-3
- Max Output Volume: Appr. 3,000 cuft/min
- Fluid Consumption @ full volume : Appr. 333 min/L
- Maximum Continuous Duration @ full volume: Unlimited
- Continuous Output : √
- Max Continuous Output Level: 100%
- Fully-loaded Cumulative Output Duration @ full volume: Appr. 499 min
- Physical Thermostat: √
- Electronic Thermo-Control: √
- Adjustable Output : √
- Adjustable Fan Speed: ×
- No-Fluid Protection: ×
- On-device Manual Control : 7-seg digital display & Knob(s)
- Wireless Control: Optional W-2 / RF 315MHz / External receiver
- Wired Control: Optional M-1
- Control Protocol: DMX-512
- DMX Channel Range: 1
- Data Connectors: 3-pin XLR
- Power Cord: √
- Wireless Controller Model: Optional W-2 / RF 315MHz / Transmitter & Receiver
- Wired Controller Model: Optional M-1
- Consumable: Haze Fluid
- Net Weight: 4 kg / 8.8 lb.
- Gross Weight: 5 kg / 11 lb.
- Machine Dimensions: 336 × 155 × 253 mm / 13.2 × 6.1 × 10 in.
- Packing Dimensions: 355 × 255 × 275 mm / 14 × 10 × 10.8 in.
